KNX SIEMENS UNIVERSAL DIMMER , 2 X 300VA

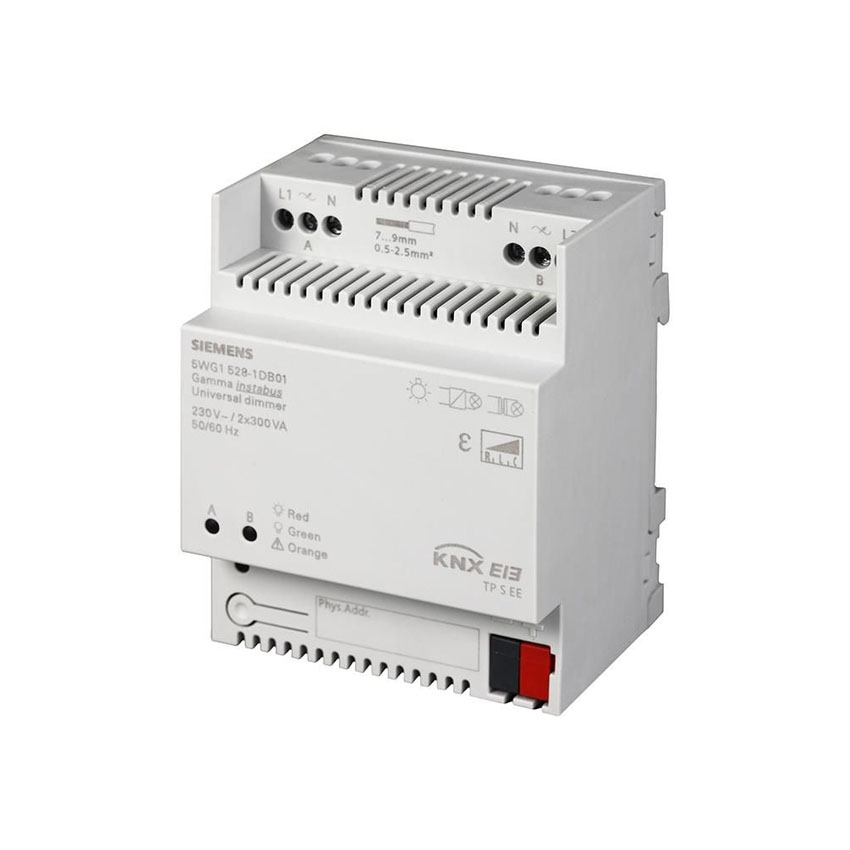

Universal Dimmer N 528D01, 2 x 300VA , AC 230 V, 5WG1 528-1DB01

Universal Dimmer for switching or dimming of dimmable lamps
● Supports dimmable lamps including LED
● Output load up to 2 x 300 VA individually or 1 x 500 VA
● No minimum load required
● Operation mode leading or trailing edge
● Automatic load detection
● Protected for short circuit, over load and temperature with LED indication
Functions with commissioning with ETS
● Operating hours counter with threshold overrun warning
● Switching cycle counter with threshold overrun warning
● Integrated 8-bit scene control and assign of each output to up to 8 scenes

Use

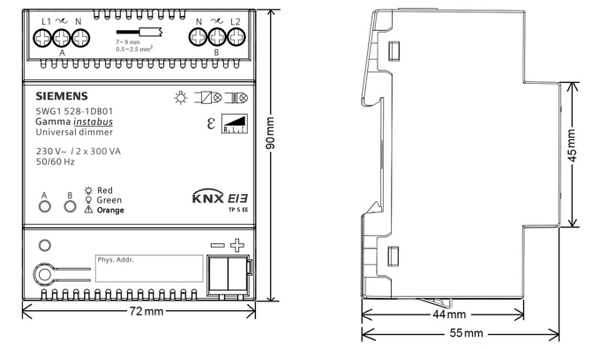

The universal dimmer is a 4 MU-wide device for DIN-rail mounting with N-system dimensions.
It is designed for lighting control, i.e. for switching and dimming resistive, inductive or capacitive loads ranging up to 300 VA with 230V AC, 50/60 Hz per output. The bus is connected via a bus terminal block. The device electronics are supplied via the bus voltage.
